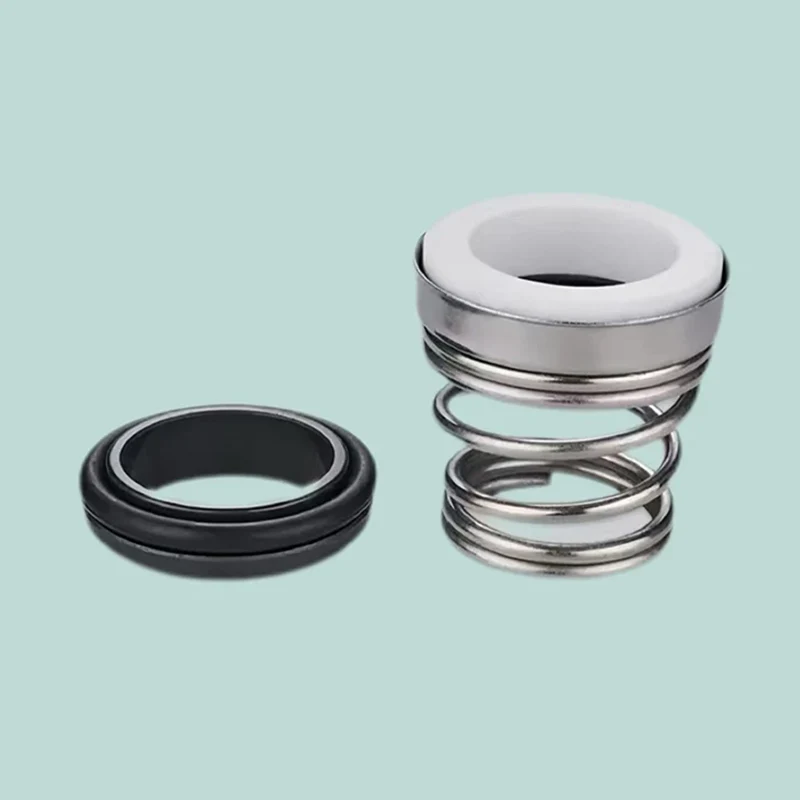

Unbalanced 1527 1528 Single Spring Mechanical Seal O Ring Pump Seal

Operations Conditions:

1.Single Spring Mechanical Seal Perfect replacement of Eagle 1527, component mechanical seals

2.Mechanical seal 1527 Analog to: Burgmann, AESSEAL, Anga, Vulcan 192, John Crane, Roten seal

3.Mediums: Water, oil, acid,alkali, etc.

4.Temperature: -20°C~180°C

5.Pressure: ≤1.0MPa

6.Speed: ≤ 10 m/Sec

Materials:

Stationary Ring (Carbon / Alumina 99% / Alumina 99.5% / SiC / SSiC / TC)

Rotary Ring (Carbon / SiC / SSiC / TC)

Secondary Seal (NBR / EPDM / FKM / Silica Gel)

Spring and Metal Part (SS304 / SS316)

1527 Unbalanced Mechanical Seals For FlowServe/K-SB Pumps With O-Ring type Seat (Material:TC/TC/FKM)

Iit is equivalent to John Crane type 1500, Vulcan type 97, Sealol type 1527.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
