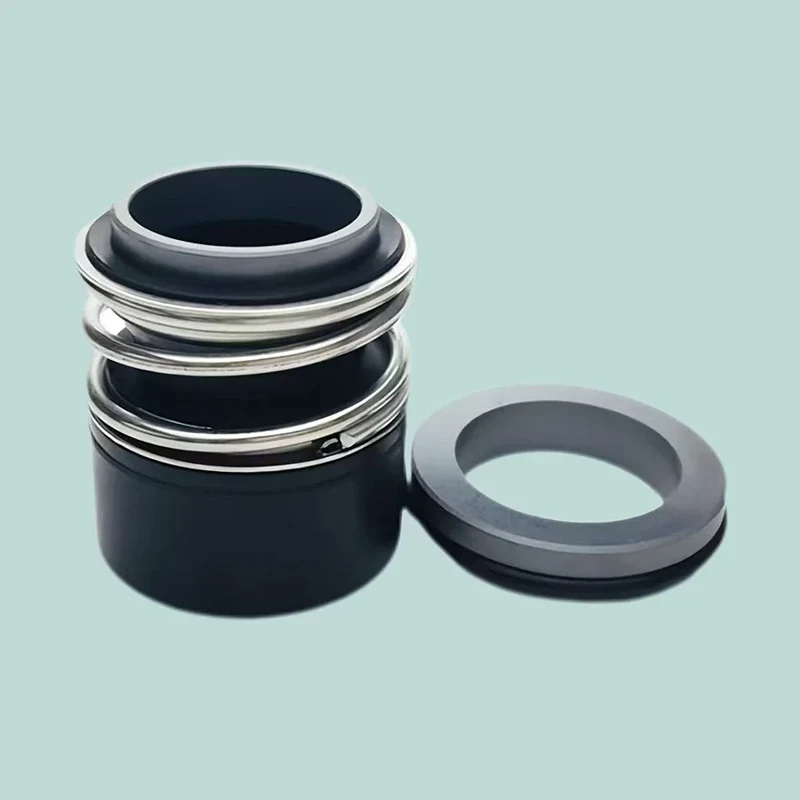

MG13 Elastomer Bellow Mechanical Seal Replaced Burgmann Mg13

Operations Conditions:

Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.

Temperature: -30°C~200°C

Pressure: ≤1.2MPa

Speed: ≤ 12 m/Sec

Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with G60, G50, G6, G4, G9, G606, etc.

Materials:

Rotary Face: Carbon / SIC / TC.

Stationary Seat: Ceramic / SIC / TC.

Bellows: NBR / EPDM / FKM.

Spring: SS304 / SS316.

Metal Parts: SS304 / SS316.

Mechanical seal MG13 - is lees commonly used among "MG" seria. The dimensions are the same as for MG1 and MG12, but with prolonged plain spigal portion of the bellows for providing the mounting length.

The seal is applied to cenrifugal pumps for water and drainage water.

Application to the following pumps is available: Grundfos (NB).

Analogs: Burgmann MG13, Lidering М212.N13, DIMER TCP.13-60.

Burgmann MG13 Mechanical Pump Shaft Seal for Chemical Pump

Burgmann MG1 seal / MG12 seal /MG13 seal/MGS20 seal & G60 stationary

Aesseal B02/B012/B013 seal

Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193

Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU

Roten L3 / Roten L3k / Roten L3
