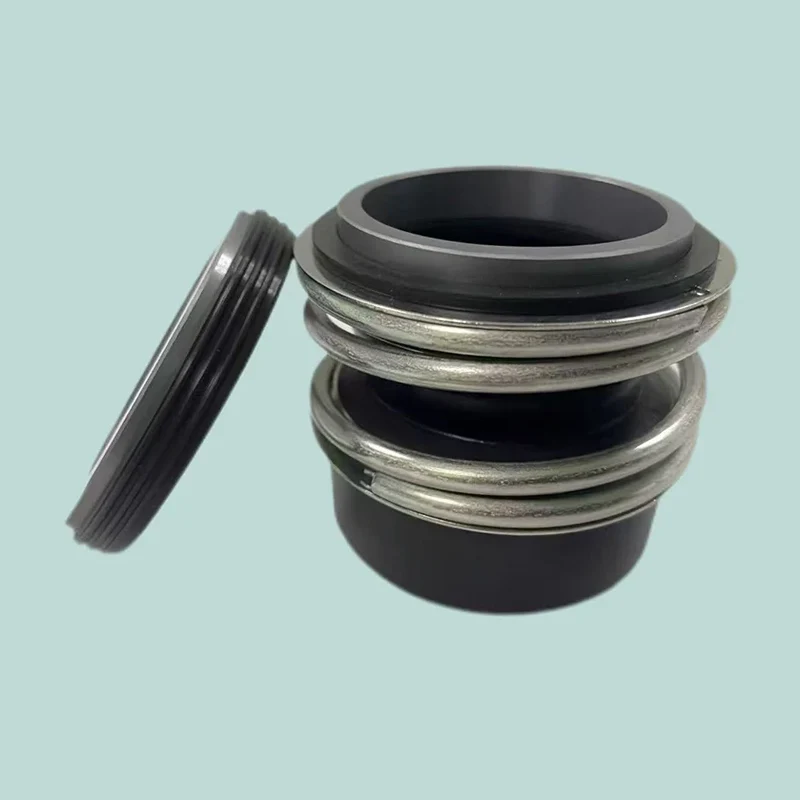

MG12 Elastomer Bellow Mechanical Seal Replaced Burgmann Mg12

Operations Conditions:

Temperature:-20ºC to +120ºC

Pressure:≤1.0MPa

Speed:≤15m/s

Materials:

ROTARY FACES: Silicon Carbide, Tungsten Carbide, Carbon Graphite

STATIONARY SEATS: Silicon Carbide, Alumina Ceramic, Carbon Graphite

BELLOWS: Buna, FKM, EPDM, Aflas, Neoprene

METAL PARTS: 304 SS standard or 316 SS option available

It features the same dimensions as of MG1 but has an extended cylindrical bellows part for providing installed length.

The seal is applied to cenrifugal pumps for water and drainage water.

Application to the following pumps is available: water pump mechanical seal, Ebara (3M, DWO), Lowara, K-SB (Etanorm, Etachrom), WILO (MVI, MHI), Grundfos (CDM), Saer (IP), Calpeda (GM, MXS)as well as to many other types of pumps.

Analogs: Burgmann MG12, AESSEAL B012, Flowserve Pac-Seal 192, ROTEN L3К, Vulcan Type 192, ANGA A1G, Sterling SMG12, Lidering М212.N12, DIMER TCP.12-60.
