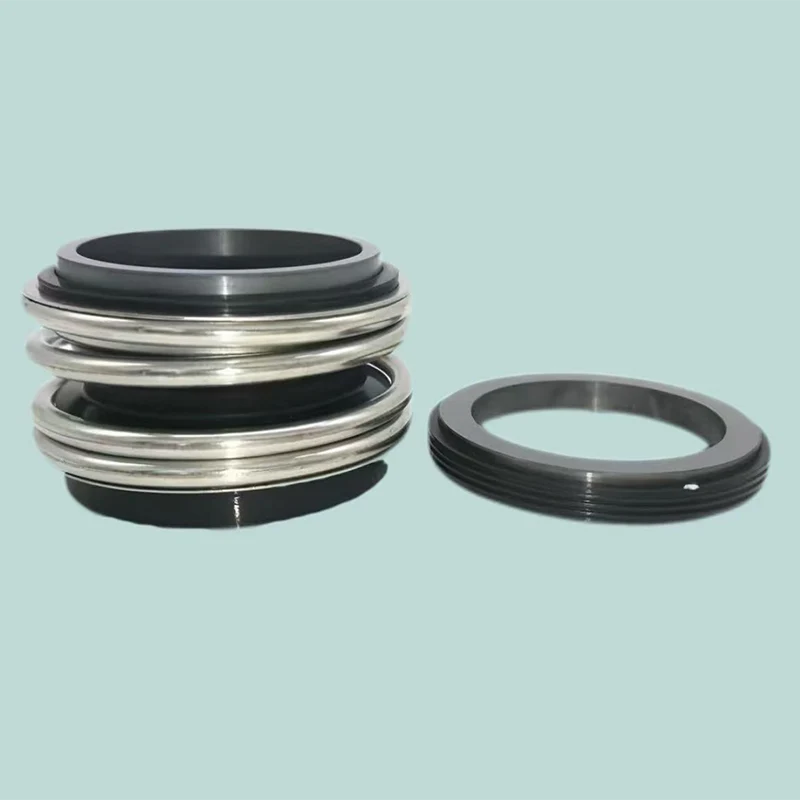

MG1 Elastomer Bellow Mechanical Seal Replaced Burgmann Mg1

Structure Description:

Equivalent to Bergmann MG1, MG12, MG13, MG1S20 mechanical seal

Rubber bellows design

Operating Limits:

Temperature:-20---120℃

Speed: 10m/s

Pressure: 12bar

Standard size: 10mm--100mm

For plain shafts

Single and dual seal

Elastomer bellows rotating

Balanced

Independent of direction of rotation

No torsion on bellows

Materials:

Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)

Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)

Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)

Metal parts: CrNiMo steel (G), Hastelloy (M)

Further materials upon request.

MG1 can Replace AESSEAL B02, BURGMANN MG1, FLOWSERVE 190, and MTU FG1,which is widely used for Hecker HN 410SU and other kinds of pumps. we usually have 4 types of stationary seat for customer's choice, G4, G6, G60 and G9. The normal material combination include carbon/ceramic/nbr/ss304, resin carbon/ceramic/nbr/ss304/, sic/sic/nbr/ss304, tc/tc/nbr/ss316 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
