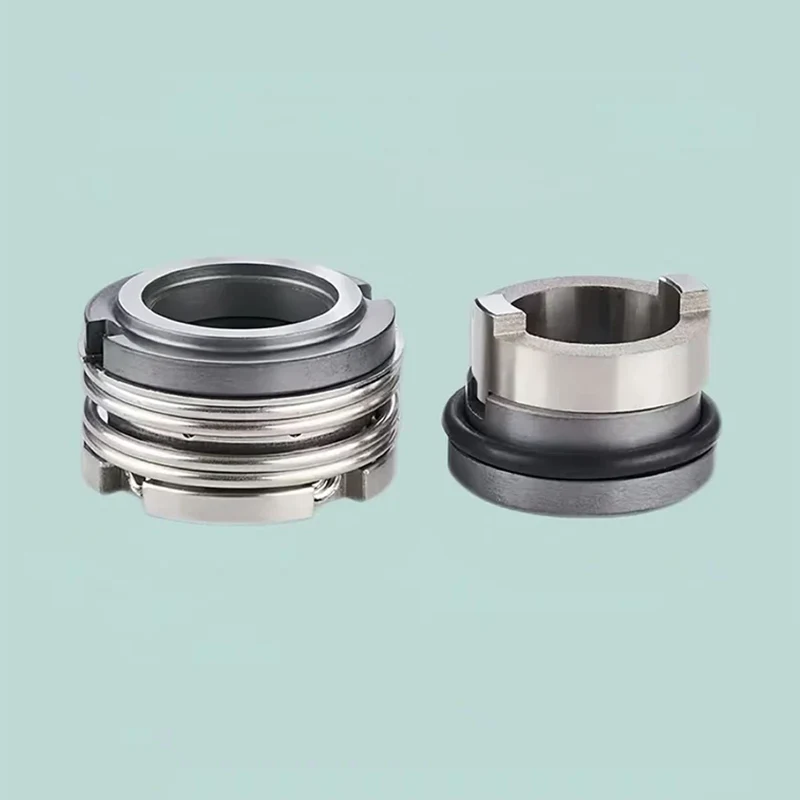

Mechanical Seals IMO Pump SP2-22mm For Imo 3E Marine Shaft Seal

Operational Conditions:

mechanical seal to suit IMO pump

three rotors screw pump

fuel oil supply system for ship in marine

ACE ACG series

high temp. mechanical seals.

Single, unbalanced, short installation dimensions.

Materials:

Seal face: Carbon graphite antimony impregnated (A)

Carbon graphite resin impregnated (B)

Seat G16: Silicon carbide (Q1)

Standards and approvals

We can provide follow IMO ACE 3 generation pump spare parts.

Code: 190497,190495,194030,190487,190484,190483,189783.

IMO ACE 3 pump spare parts secondary seal 190468,190469.

pump mechanical seal parts-22mm

triple rotors screw pump

fuel oil supply system for ship in marine

ACE ACG series

high temp. mechanical seals.

Imo pump mechanical seal parts-22mm

1. IMO ACE025L3 pump to suit mechanical shaft seal 195C-22mm, Imo 190495 (wave spring)

2. IMO-190497 ACE pump mechanical seal for marine industry, Imo 190497 (coil spring)

3. IMO ACE 3 pump spare parts shaft seal 194030, Imo 194030 (coil spring)
