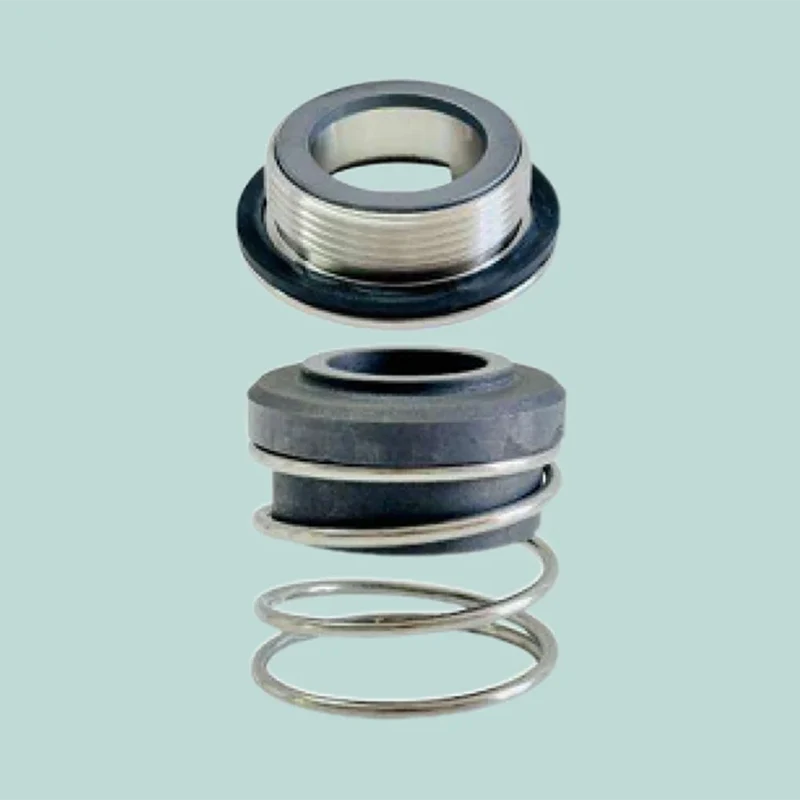

Mechanical Seals Alfa laval AL-22

Operational Conditions:

Aesseal P07 seal 22mm,alf Mechanical Seals for Sanitary Pumps

Temperature: -20ºC to +200ºC

Speed: ≤10m/s

Pressure: ≤1.2MPa

Materials:

Stationary Ring: Steel, Silicon Carbide, TC

Rotary Ring: Carbon

Secondary Seal: NBR, EPDM, FKM

Spring and Metal Parts: Steel

Size:22MM

Alf Pump Seal Double Face Mechanical Seals Type 91 22mm AES P07

Replacement to:Aesseal P07 seal 22mm

Applications:

CM 1,1A,1B,1C et 1D;GM 1,1A,2,2A;EM 1C,EM 1D

FM OS,0,1,1A,1AE,2,2A,3,3A,4 et 4A

MR166A,166B,166E

ME155AE,GM1,GM1A,GM2,GM2A,MA166E

MR 185,185A,200 et 200A

Tri-Flo(Tri-Clover) Series CL

LHK 10,15,20,25,35,40,45,50 et 60

LHK series pump with a flushed seal chamber

LHK series pump with a flushed seal chamber -S

LHK series pump with a flushed seal chamber and Double seals

LKHI,LKHP,LKHSP,LKH 100 series multi-stage

LHK 70&80

ALC-pompen voorzien van type F-dichtingen,No:31460-3500

Tri-Clover C-series

Tri-Clover "Centrifugal 200"

Rotor LKPL,NMOG and SRU series ,OEM "R90 Seals"

Alf LKR-Series agitators

Alf  ALC-Series pumps

Alf IMO pumps
