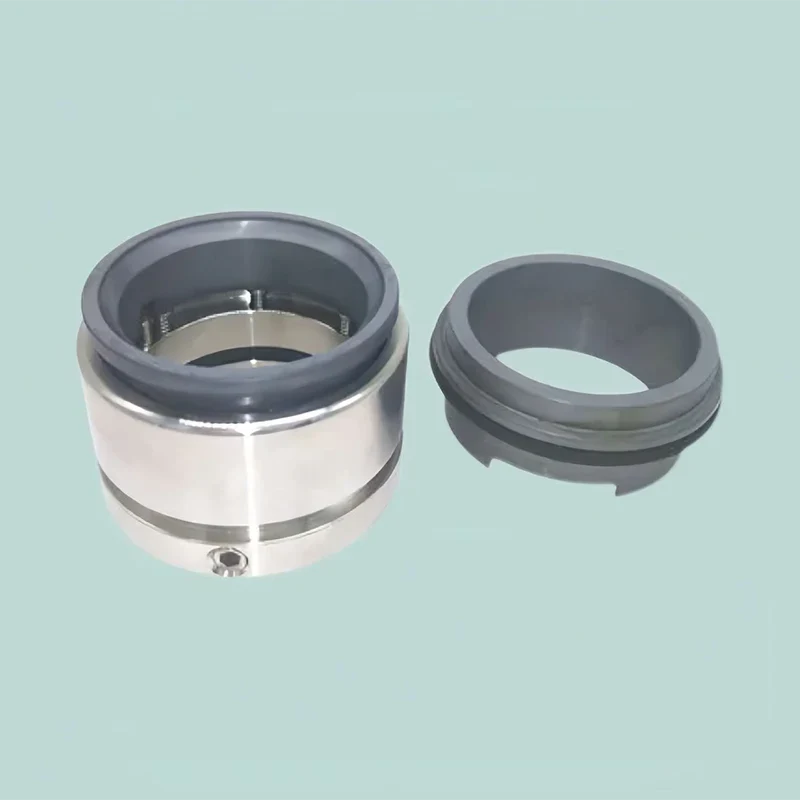

GLF-SA Mechanical Seals for Cartridge Mechanical Seal for CRT, NK,CLM-G and CLP-G Series Pumps

Structure: Single End

Pressure: Medium Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: General Temperature Mechanical Seal

Performance: Corrosion

Standard: DIN24960, ISO3069, GB6556, EN12756

Model NO.: GR-SA, GR-SA-INFK

Balance: Balanced

Suitable for CR, CRN, and CRI series Sarlin Pumps

GLF-SA-S : 38MM; 50MM; 65MM

GLF-SA-L : 32MM; 38MM; 50MM ;65MM

Materials:

Rotary Ring Face: SiC/TC/CAR

Stationary Ring Face: SiC/TC/CAR

Elastomers: FKM/EPDM/FFKM

Springs: SS304/SS316

Metal Parts: SS304/SS316

GR-SA and GR-SA-INFK Mechanical Seal for Sewage Pumps

Structural Features: single end, multiple still springs with spring protection, balanced, independent direction of rotation, bolt transmission, non-cartridge seal. The springs are separated from the sealed mediums so that they will not be jammed. Multi spring structure makes sure the load on the sealing faces balanced. This seal component has a compact structure with easy installation and reliable performance.

Industrial Standards: DIN24960, ISO3069, GB6556, EN12756

Scopes of Application: mainly used in sewage pumps, immersible pumps, paper pulp pumps and other rotary devices for industries such as city construction, mining, power plants and sewage treatment. This component can work as an alternative to Gorman-Rupp and Grundfos original seal product GR-SA or replacing Type 891 mechanical seal
