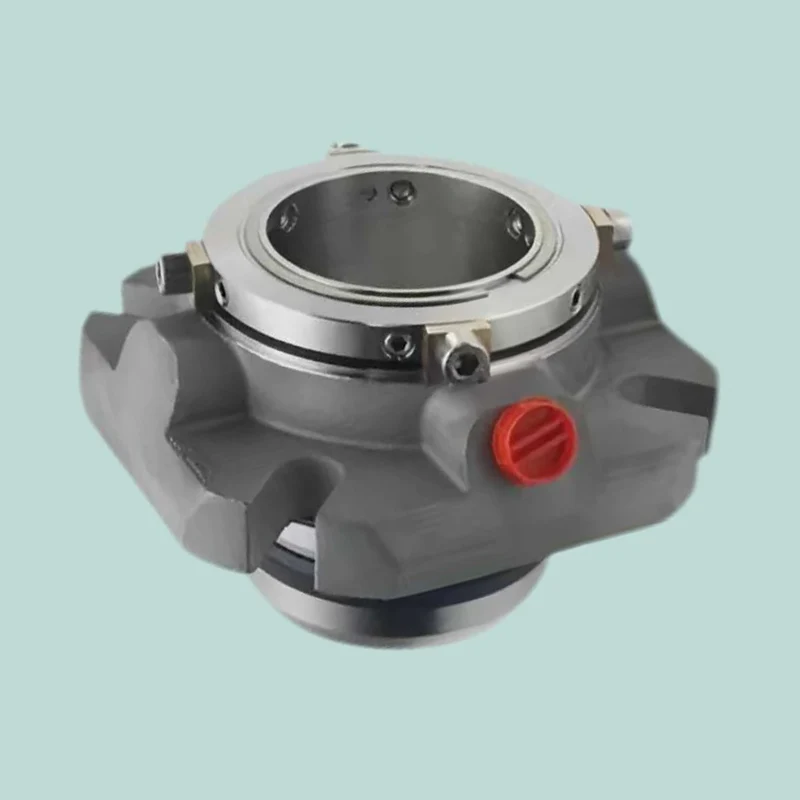

25m/S AESSEAL DMSF Double Cartridge Seal Mechanical Seal

Operations Conditions:

Type:Double Cartridge Seal

Replacement:AES DMSF

Temperature:-30℃ to +205℃

Pressure:≤2.1Mpa

Speed:≤25m/s

Materials:

Rotary Ring (SiC /Carbon/TC)

Stationary Ring (Carbon/ SiC /TC)

Secondary Seal (FKM/PTFE/Encapsulated Ring)

Metal Bellows (SUS316L/AM350/Inconel718/Tltanlum)

Other Parts (300 Series Stainless Steel)

Monolithic seal faces provide maxiumum face stability in high temperature applications improving seal life.

Seal face drive over large contact area prevents damage to faces in stop / start applications and viscous fluids

DMSF incorporates a highly effective bi-directional pumping scroll to maximise cooling and increase seal life

large 3/8" NPT seal gland ports maximize cooling potential and extend seal life

Integral deflector guides cooling barrier fluid to the most essential areas and extends seal life

Exotic DMSF/DMSC option also includes exotic alloy wetted components at minimum price premium for use with corrosive chemicals

Hydraulically balanced seal-face technology for reduced power consumption with the ability to withstand pressure fluctuations
